CAT24C08 - CMOS Serial EEPROM

Product Overview

ON Semiconductor

Datasheet Details

Part number	CAT24C08
Manufacturer	ON Semiconductor
File Size	213.92 KB
Description	CMOS Serial EEPROM
Datasheet	CAT24C08 Datasheet
Note	This datasheet PDF includes multiple part numbers: CAT24C08, CAT24C01. Please refer to the document for exact specifications by model.

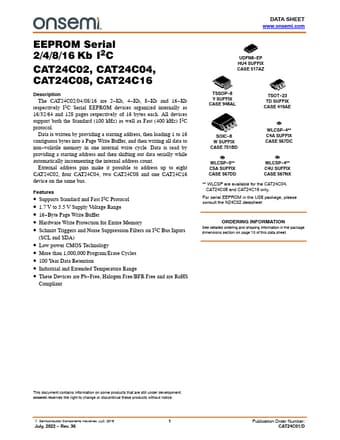

Additional preview pages of the CAT24C08 datasheet.

Product details

Description

The CAT24C02/04/08/16 are 2 Kb, 4 Kb, 8 Kb and 16 Kb respectively I2C Serial EEPROM devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each.All devices support both the Standard (100 kHz) as well as Fast (400 kHz) I2C protocol.Data is written by providing a starting address, then loading 1 to 16 contiguous bytes into a Page Write Buffer, and then writing all data to non volatile memory in one internal write cycle.

Features

Supports Standard and Fast I2C Protocol.
1.7 V to 5.5 V Supply Voltage Range.
16.
Byte Page Write Buffer.
Hardware Write Protection for Entire Memory.
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA).
Low power CMOS Technology.
More than 1,000,000 Program/Erase Cycles.
100 Year Data Retention.
Industrial and Extended Temperature Range.
These Devices are Pb.
Free,.
