CAT93C86 - 16Kb Microwire Serial EEPROM

ON Semiconductor

📥 Download Datasheet

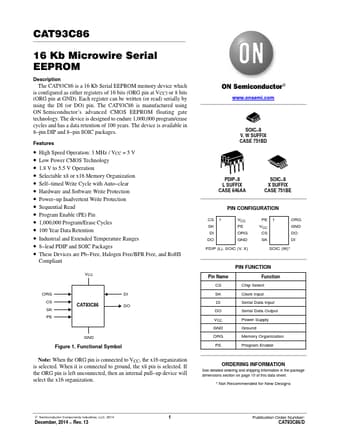

CAT93C86 Datasheet Preview — Preview of CAT93C86 PDF

Datasheet Details

Part number	CAT93C86
Manufacturer	ON Semiconductor
File Size	92.11 KB
Description	16Kb Microwire Serial EEPROM
Datasheet	CAT93C86-ONSemiconductor.pdf

CAT93C86 Product details

Description

The CAT93C86 is a 16 Kb Serial EEPROM memory device which is configured as either registers of 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND).Each register can be written (or read) serially by using the DI (or DO) pin.The CAT93C86 is manufactured using ON Semiconductor’s advanced CMOS EEPROM floating gate technology.The device is designed to endure 1,000,000 program/erase cycles and has a data retention of 100 years.The device is available in 8 pin DIP and 8 pin SOIC pac

Features

High Speed Operation: 3 MHz / VCC = 5 V.
Low Power CMOS Technology.
1.8 V to 5.5 V Operation.
Selectable x8 or x16 Memory Organization.
Self.
timed Write Cycle with Auto.
clear.
Hardware and Software Write Protection.
Power.
up Inadvertent Write Protection.
Sequential Read.
Program Enable (PE) Pin.
1,000,000 Program/Erase Cycles.
100 Year Data Retention.
Industrial an.
