CM2031

HDMI Receiver Port Protection and Interface Device

CM2031 Features

* HDMI 1.3 compliant Supports thin dielectric and 2-layer boards Minimizes TMDS skew with 0.05pF matching 2 Long HDMI cable support with integrated I C accelerator Active termination

CM2031 General Description

The CM2031 HDMI Receiver Port Protection and Interface Device is specifically designed for next generation HDMI Sink interface protection. An integrated package provides all ESD, slew rate limiting on CEC line, level shifting/isolation and backdrive protection for an HDMI port in a single 38Pin TSSO.

CM2031 Datasheet (310.19 KB)

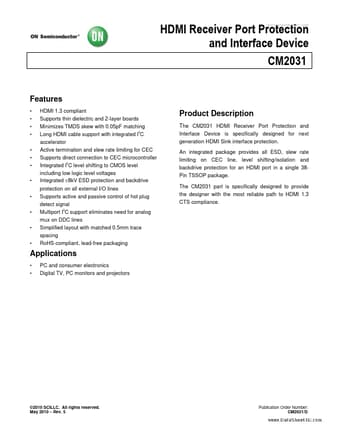

Preview of CM2031 PDF

Datasheet Details

Part number:

CM2031

Manufacturer:

ON Semiconductor ↗

File Size:

310.19 KB

Description:

Hdmi receiver port protection and interface device.
