CS8361 Datasheet - ON Semiconductor

CS8361 - 5.0V Dual Micropower Low Dropout Regulator

PACKAGE PIN # D2PAK, 7 Pin SO *16L 1 16 21 33 4 4, 5, 12, 13 56 68 79 2, 7, 10, 11, 14, 15 PIN SYMBOL VSTBY VIN VTRK GND Adj ENABLE RESET NC FUNCTION Standby output voltage delivering 100 mA.

Input voltage.

Tracking output voltage controlled by ENABLE delivering 250 mA.

Reference

CS8361 5.0 V Dual Micropower Low Dropout Regulator with ENABLE and RESET The CS8361 is a precision Micropower dual voltage regulator with ENABLE and RESET.

The 5.0 V standby output is accurate within ±2% while supplying loads of 100 mA and has a typical dropout voltage of 400 mV.

Quiescent current is low, typically 140 mA with a 300 mA load.

The active RESET output monitors the 5.0 V standby output and is low during power up and regulator dropout conditions.

The RESET circuit includes h

CS8361 Features

* 2 Regulated Outputs

* Standby Output 5.0 V ± 2%; 100 mA

* Tracking Output 5.0 V; 250 mA

* Low Dropout Voltage (0.4 V at Rated Current)

* RESET Option

* ENABLE Option

* Low Quiescent Current

* Protection Features

* Independent

CS8361-ONSemiconductor.pdf

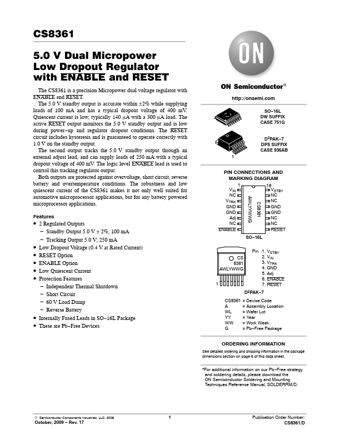

Preview of CS8361 PDF
CS8361 Datasheet Preview Page 2 CS8361 Datasheet Preview Page 3

Datasheet Details

Part number:

CS8361

Manufacturer:

ON Semiconductor ↗

File Size:

150.26 KB

Description:

5.0v dual micropower low dropout regulator.
