DAC-08E, DAC-08, 8-Bit High-Speed Multiplying D/A Converter

DAC *08 SERIES 8 *Bit High *Speed Multiplying D/A Converter The DAC-08 series of 8-bit monolithic multiplying Digital-toAnalog C.
Pin # N Package / D Package 1/5 2/6 3/7 4/8 5/9 6/10 7/11 8/12 9/13 10/14 11/15 12/16 13/1 14/2 15/3 16/4 Symbol VLC IO V. IO B1 B2 B3 B4 B5.

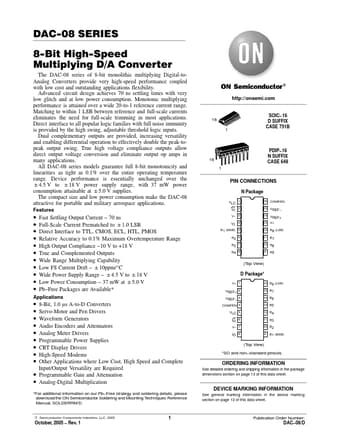

datasheet Preview Page 1 from Datasheet4u.com

DAC-08-ONSemiconductor.pdf

DAC-08E Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC-08E, DAC-08. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC-08E, DAC-08

Manufacturer:

ON Semiconductor ↗

File Size:

137.75 KB

Description:

8-Bit High-Speed Multiplying D/A Converter

Note:

This datasheet PDF includes multiple part numbers: DAC-08E, DAC-08.
Please refer to the document for exact specifications by model.

Features

* Fast Settling Output Current
* 70 ns
* Full-Scale Current Prematched to "1.0 LSB
* Direct Interface to TTL, CMOS, ECL, HTL, PMOS
* Relative Accuracy to 0.1% Maximum Overtemperature Range
* High Output Compliance
* 10 V to +18 V
* True

Applications

* flexibility. Advanced circuit design achieves 70 ns settling times with very low glitch and at low power consumption. Monotonic multiplying performance is attained over a wide 20-to-1 reference current range. Matching to within 1 LSB between reference and full-scale currents eliminates the need for
