DAP018F

PWM Current-Mode Controller

DAP018F Features

* the device takes advantage of the auxiliary winding negative swing to let the user adjust the maximum power the converter can deliver in high line conditions (OPP). When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically freezes the peak cu

DAP018F General Description

A resistive divider from the auxiliary winding to this pin sets the OPP compensation level. This pin offers an over

*voltage protection input. Wiring a capacitor to ground helps selecting the timer duration. This pin offers a way to adjust the frequency modulation pace. By connecting a resist.

DAP018F Datasheet (788.33 KB)

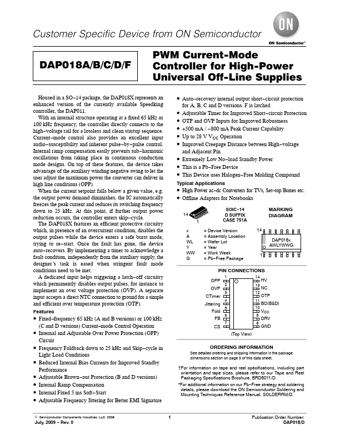

Preview of DAP018F PDF

Datasheet Details

Part number:

DAP018F

Manufacturer:

ON Semiconductor ↗

File Size:

788.33 KB

Description:

Pwm current-mode controller.
Customer Specific Device from ON Semiconductor DAP018A/B/C/D/F PWM Current-Mode Controller for High-Power Universal Off-Line Supplies
