DTA113EE Datasheet - ON Semiconductor

DTA113EE - Digital Transistors

MUN2130, MMUN2130L, MUN5130, DTA113EE, DTA113EM3, NSBA113EF3 Digital Transistors (BRT) R1 = 1 kW, R2 = 1 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual c

DTA113EE Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,

DTA113EE-ONSemiconductor.pdf

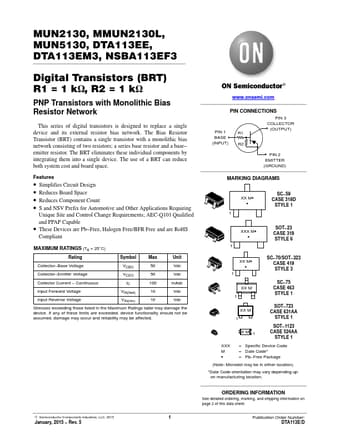

Preview of DTA113EE PDF
DTA113EE Datasheet Preview Page 2 DTA113EE Datasheet Preview Page 3

Datasheet Details

Part number:

DTA113EE

Manufacturer:

ON Semiconductor ↗

File Size:

103.03 KB

Description:

Digital transistors.
