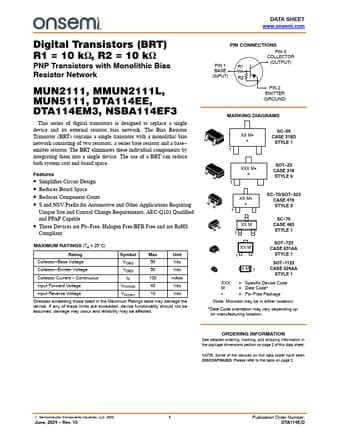

Preview of DTA114EE PDF
DTA114EE Datasheet Preview Page 2 DTA114EE Datasheet Preview Page 3

Datasheet Details

Part number:

DTA114EE

Manufacturer:

ON Semiconductor ↗

File Size:

485.96 KB

Description:

Digital transistors.

DTA114EE, Digital Transistors

Digital Transistors (BRT) R1 = 10 kW, R2 = 10 kW PNP Transistors with Monolithic Bias Resistor Network MUN2111, MMUN2111L, MUN5111, DTA114EE, DTA114EM3, NSBA114EF3 This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual

DTA114EE Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,
