DTA114EKA

PNP Digital Transistor

DTA114EKA Features

* Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)

* The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of alm

DTA114EKA Datasheet (498.72 KB)

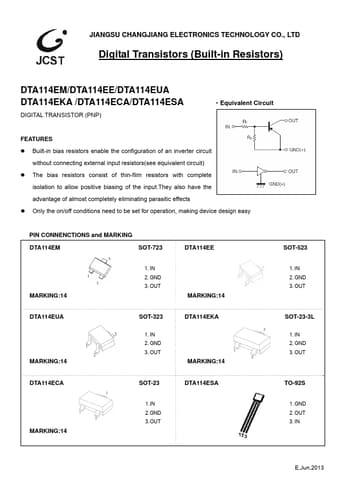

Preview of DTA114EKA PDF

Datasheet Details

Part number:

DTA114EKA

Manufacturer:

JCET

File Size:

498.72 KB

Description:

Pnp digital transistor.
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) DTA114EM/DTA114EE/DTA114EUA DTA114EKA /DTA114ECA/DTA114ES.
