* 1) Built-In Biasing Resistors, R1 = R2 = 10kΩ 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary N
DTA114EEFRA Datasheet (1.19 MB)
DTA114EEFRA
1.19 MB
Pnp -100ma -50v digital transistor.

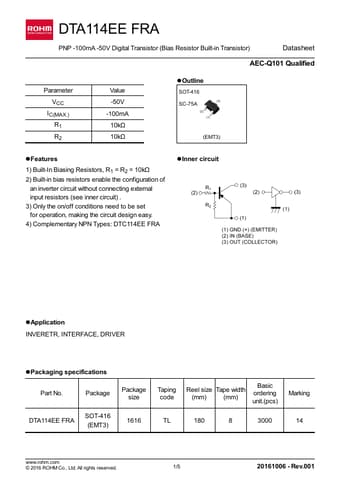

DTA114EE FRA
PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
AEC-Q101 Qualified
Parameter VCC
IC(MAX.) R1 R2
Val.
