DTA144EM3, DTA144EE - Digital Transistors

DTA144EM3 Description

MUN2113, MMUN2113L, MUN5113, DTA144EE, DTA144EM3, NSBA144EF3 Digital Transistors (BRT) R1 = 47 kW, R2 = 47 kW PNP Transistors with Monolithic Bias Re.

DTA144EM3 Features

* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count

DTA144EM3 Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C) Rating Symbol Max Unit Collector
* Base Voltage VCBO 50 Vdc Collector

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTA144EM3, DTA144EE. Please refer to the document for exact specifications by model.

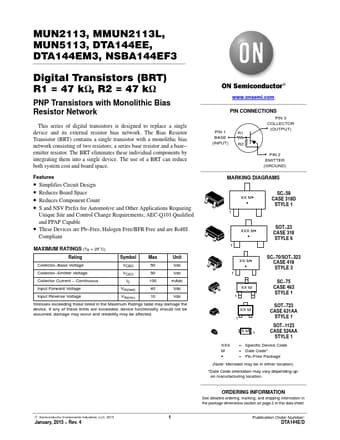

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTA144EM3, DTA144EE
Manufacturer
ON Semiconductor ↗
File Size
112.07 KB
Datasheet
DTA144EE-ONSemiconductor.pdf
Description
Digital Transistors
Note
This datasheet PDF includes multiple part numbers: DTA144EM3, DTA144EE.
Please refer to the document for exact specifications by model.
