DTA144TM3 Datasheet - ON Semiconductor

DTA144TM3 - Digital Transistors

MUN2140, MMUN2140L, MUN5140, DTA114TE, DTA144TM3, NSBA144TF3 Digital Transistors (BRT) R1 = 47 kW, R2 = 8 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network.

The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

The BRT eliminates these individual

DTA144TM3 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,

DTA144TM3-ONSemiconductor.pdf

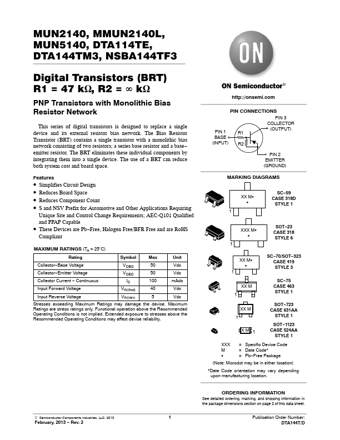

Preview of DTA144TM3 PDF
DTA144TM3 Datasheet Preview Page 2 DTA144TM3 Datasheet Preview Page 3

Datasheet Details

Part number:

DTA144TM3

Manufacturer:

ON Semiconductor ↗

File Size:

142.04 KB

Description:

Digital transistors.
