DTC114YE Digital Transistors

MUN2214, MMUN2214L, MUN5214, DTC114YE, DTC114YM3, NSBC114YF3 Digital Transistors (BRT) R1 = 10 kW, R2 = 47 kW NPN Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT eliminates these individual c.

DTC114YE Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free,

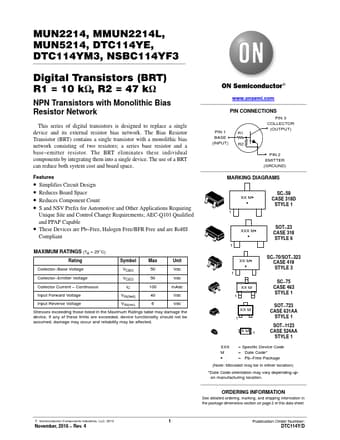

DTC114YE Datasheet (135.41 KB)
