ECH8419 - N-Channel Power MOSFET

Product Overview

ON Semiconductor

Part number	ECH8419
Manufacturer	ON Semiconductor
File Size	216.67 KB
Description	N-Channel Power MOSFET
Datasheet	ECH8419 Datasheet

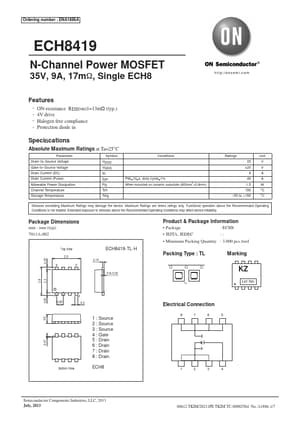

Additional preview pages of the ECH8419 datasheet.

ON-resistance RDS(on)1=13mΩ (typ. ).
4V drive.
Halogen free compliance.
Protection diode in Speciﬁcations Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg Conditions PW≤10μs, duty cycle≤1% When mounted on ceramic substrate (900mm2×0.8mm) Ratings 35 ±20 9 40 1.5 150 --5.
