ECH8309 - P-Channel Power MOSFET

ECH8309 Description

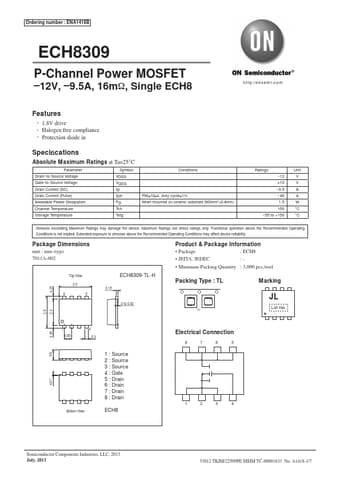

Ordering number : ENA1418B ECH8309 P-Channel Power MOSFET *12V, *9.5A, 16mΩ, Single ECH8 http://onsemi.com .

ECH8309 Features

* 1.8V drive
* Halogen free compliance
* Protection diode in Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature VDSS V

ECH8309 Applications

* and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended,
