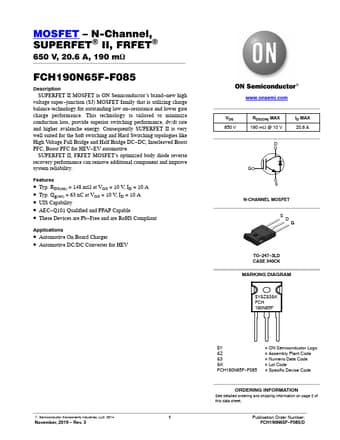

FCH190N65F-F085 Datasheet, Mosfet, ON Semiconductor

FCH190N65F-F085 Features

• Mosfet
• Typ. RDS(on) = 148 mW at VGS = 10 V, ID = 10 A
• Typ. Qg(tot) = 63 nC at VGS = 10 V, ID = 10 A
• UIS Capability
• AEC
• Q101 Qualified and PPAP C

PDF File Details

Part number:

FCH190N65F-F085

Manufacturer:

ON Semiconductor ↗

File Size:

415.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet. SUPERFET II MOSFET is ON Semiconductor’s brand

new high voltage super

junction (SJ) MOSFET family that is utilizing c

FCH190N65F-F085 Application

• Applications
• Automotive On Board Charger
• Automotive DC/DC Converter for HEV www.onsemi.com VDS 650 V RDS(ON) MAX 190 mW @ 10
