FJL6920 NPN Triple Diffused Planar Silicon Transistor

ON Semiconductor

Description

NPN Triple Diffused Planar Silicon Transistor FJL6920 .

📥 Download Datasheet

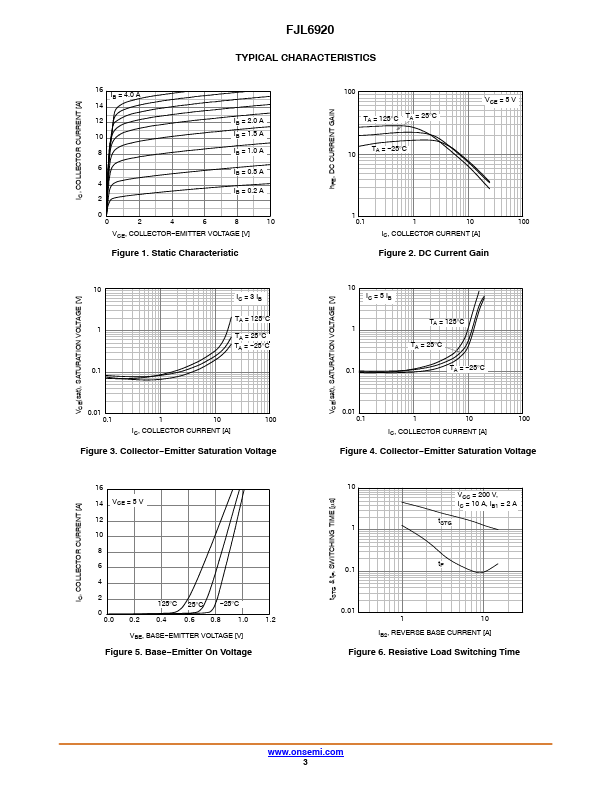

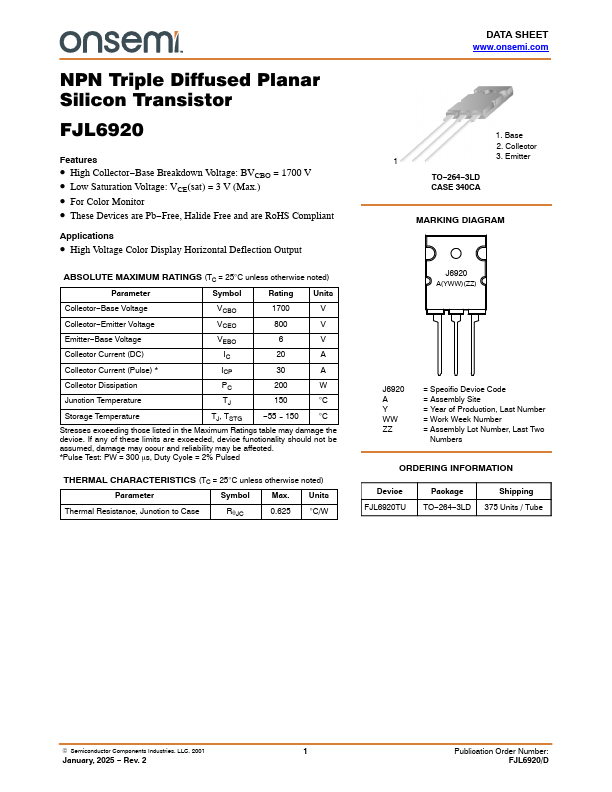

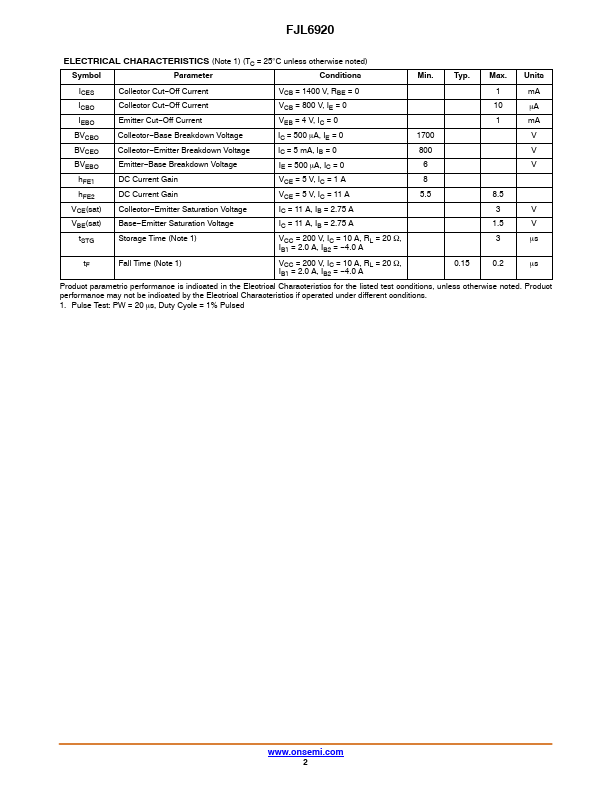

FJL6920 Datasheet Preview — Preview of FJL6920 PDF

Datasheet Specifications

Part number: FJL6920
Manufacturer: ON Semiconductor ↗
File Size: 235.98 KB
Datasheet: FJL6920-ONSemiconductor.pdf
Description: NPN Triple Diffused Planar Silicon Transistor

Features

* High Collector
* Base Breakdown Voltage: BVCBO = 1700 V
* Low Saturation Voltage: VCE(sat) = 3 V (Max. )
* For Color Monitor
* These Devices are Pb

Applications

* High Voltage Color Display Horizontal Deflection Output ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise noted) Parameter Symbol Rating Units Collector
* Base Voltage VCBO 1700 V Collector
* Emitter Voltage VCEO 800 V Emitter
* Base Voltage VEBO 6 V C
