FSFR2100XS, Power Switch

Power Switch for Half-Bridge Resonant Converters DATA SHEET www.onsemi.com FSFR-XS Series SIP9 26x10.5 CASE 127EM .
The FSFR. XS series includes highly integrated power switches designed for high. efficiency half. bridge resonant converters.

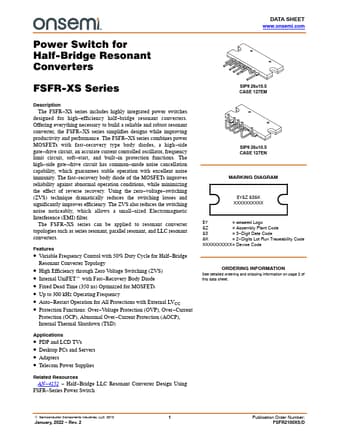

datasheet Preview Page 1 from Datasheet4u.com

FSFR2100XS-ONSemiconductor.pdf

FSFR2100XS Datasheet Preview — Preview of FSFR2100XS PDF

Datasheet Details

Part number:

FSFR2100XS

Manufacturer:

ON Semiconductor ↗

File Size:

712.91 KB

Description:

Power Switch

Features

* Variable Frequency Control with 50% Duty Cycle for Half
* Bridge Resonant Converter Topology
* High Efficiency through Zero Voltage Switching (ZVS)
* Internal UniFETt with Fast
* Recovery Body Diode
* Fixed Dead Time (350 ns) Optimized for MOSFETs

Applications

* PDP and LCD TVs
* Desktop PCs and Servers
* Adapters
* Telecom Power Supplies Related Resources AN
* 4151
* Half
* Bridge LLC Resonant Converter Design Using FSFR
* Series Power Switch SIP9 26x10.5 CASE 127EN MARKING DIAGRAM $Y&Z &3&K XX
