KSA708 Datasheet - ON Semiconductor

KSA708 - PNP Epitaxial Silicon Transistor

TO *92 3 4.825X4.76 Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi

DATA SHEET www.onsemi.com PNP Epitaxial Silicon Transistor KSA708 Low Frequency Amplifier & Medium Speed Switching Complement to KSC1008 Collector Base Voltage: VCBO = 80 V Collector Power Dissipation: PC = 800 mW Suffix “ C” means Center Collector (1.

Emitter 2.

Collector 3.

Base) ABSOLUTE MAXIMUM RATINGS (TA = 25C unless otherwise noted.) Symbol Parameter Ratings Unit VCBO Collector Base Voltage 80 V VCEO Collector<

KSA708-ONSemiconductor.pdf

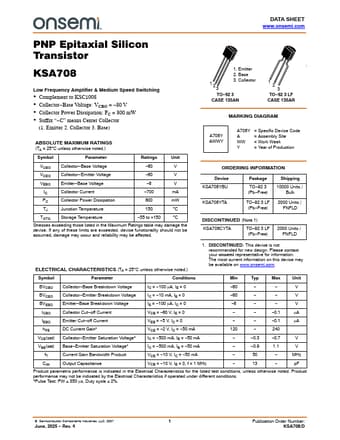

Preview of KSA708 PDF
KSA708 Datasheet Preview Page 2 KSA708 Datasheet Preview Page 3

Datasheet Details

Part number:

KSA708

Manufacturer:

ON Semiconductor ↗

File Size:

202.06 KB

Description:

Pnp epitaxial silicon transistor.
