KSA1298 Datasheet - ON Semiconductor

Datasheet Details

Part number:

KSA1298

Manufacturer:

ON Semiconductor ↗

File Size:

153.62 KB

Description:

PNP Epitaxial Silicon Transistor

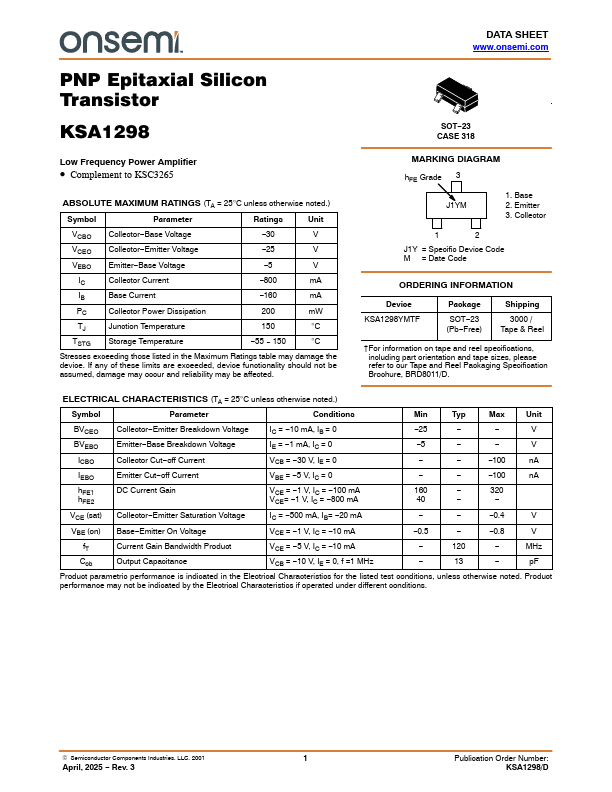

DATA SHEET www.onsemi.com PNP Epitaxial Silicon Transistor KSA1298 T SOT *23 CASE 318 Low Frequency Power Amplifier * Complement to KSC3265 ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted.) Symbol Parameter Ratings Unit VCBO Collector *Base Voltage

KSA1298-ONSemiconductor.pdf

Preview of KSA1298 PDF
KSA1298 Datasheet Preview Page 2 KSA1298 Datasheet Preview Page 3

KSA1298, PNP Epitaxial Silicon Transistor

98ASB42226B Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

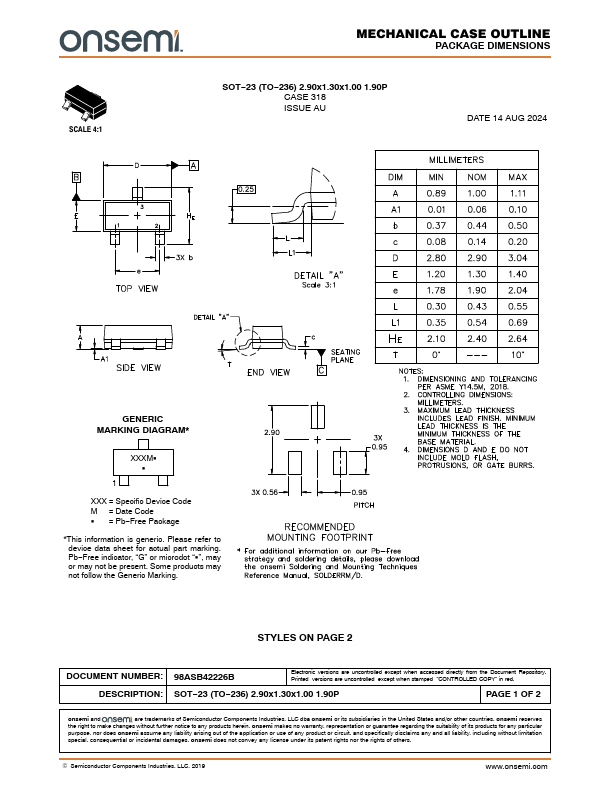

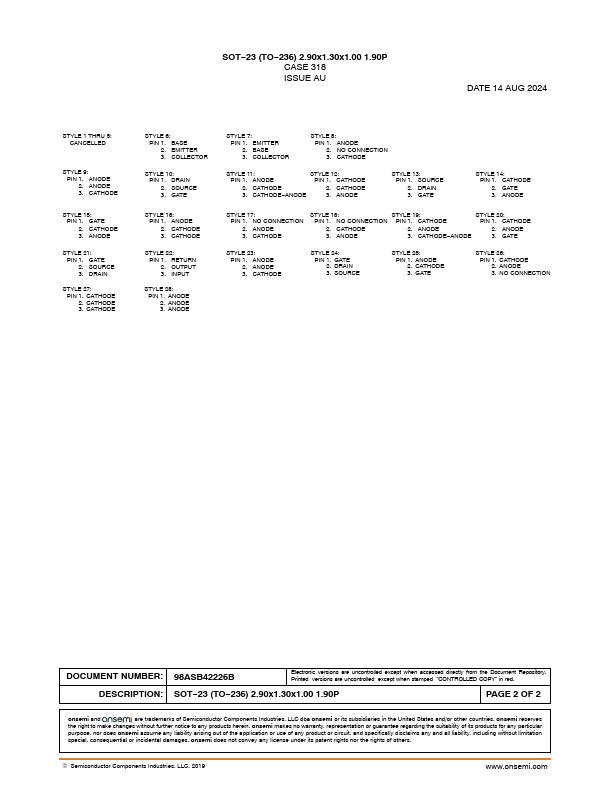

SOT *23 (TO *236) 2.90x1.30x1.00 1.90P PAGE 1 OF 2 onsemi and are trademarks of Semiconduc

DATA SHEET www.onsemi.com PNP Epitaxial Silicon Transistor KSA1298 T SOT 23 CASE 318 Low Frequency Power Amplifier Complement to KSC3265 ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted.) Symbol Parameter Ratings Unit VCBO Collector Base Voltage 30 V VCEO Collector Emitter Voltage 25 V VEBO Emitter Base Voltage 5 V IC Collector Current 800 mA IB Base Current 160 mA PC Colle
