KSA1381, PNP Epitaxial Silicon Transistor

PNP Epitaxial Silicon Transistor KSA1381 .

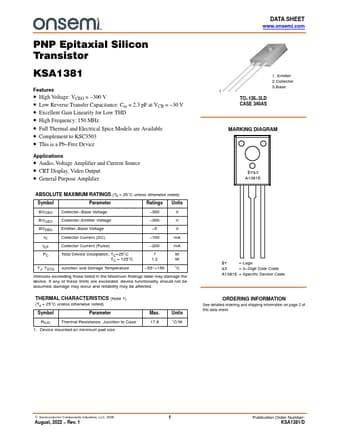

datasheet Preview Page 1 from Datasheet4u.com

KSA1381-ONSemiconductor.pdf

KSA1381 Datasheet Preview — Preview of KSA1381 PDF

Datasheet Details

Part number:

KSA1381

Manufacturer:

ON Semiconductor ↗

File Size:

208.21 KB

Description:

PNP Epitaxial Silicon Transistor

Features

* High Voltage: VCEO =
* 300 V
* Low Reverse Transfer Capacitance: Cre = 2.3 pF at VCB =
* 30 V
* Excellent Gain Linearity for Low THD
* High Frequency: 150 MHz
* Full Thermal and Electrical Spice Models are Available
* Complement to KSC3

Applications

* Audio, Voltage Amplifier and Current Source
* CRT Display, Video Output
* General Purpose Amplifier ABSOLUTE MAXIMUM RATINGS (Ta = 25°C unless otherwise noted) Symbol Parameter Ratings Units BVCBO Collector
* Base Voltage
* 300 V BVCEO Collector
