KSC945 - NPN Epitaxial Silicon Transistor

ON Semiconductor

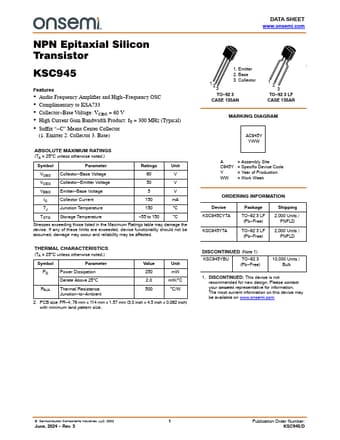

KSC945 Datasheet Preview — Preview of KSC945 PDF

Datasheet Details

Part number	KSC945
Manufacturer	ON Semiconductor ↗
File Size	199.93 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	KSC945-ONSemiconductor.pdf

KSC945 Product details

Description

TO 92 3 4.825X4.76 Electronic versions are uncontrolled except when accessed directly from the Document Repository.Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries.onsemi reserves the right to make changes without further notice to any products herein.onsemi makes no warranty, representation or

Features

Audio Frequency Amplifier and High.
Frequency OSC.
Complimentary to KSA733.
Collector.
Base Voltage: VCBO = 60 V.
High Current Gain Bandwidth Product: fT = 300 MHz (Typical).
Suffix “.
C” Means Center Collector (1. Emitter 2. Collector 3. Base).
