LA78041 Signal-Processor

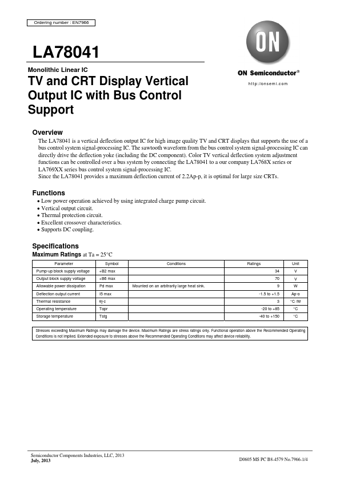

Ordering number : EN7966 LA78041 Monolithic Linear IC TV and CRT Display Vertical Output IC with Bus Control Support Overview http://onsemi.com The LA78041 is a vertical deflection output IC for high image quality TV and CRT displays that supports the use of a bus control system signal-processing IC. The sawtooth waveform from the bus control system signal-processing IC can directly drive the deflection yoke (including the DC component). Color TV vertical deflection system adjustment functio.

LA78041 Datasheet (66.50 KB)
