LA73076V

Video Driver

ON Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	LA73076V-TLM-E	IC VIDEO DRIVER 16SSOP	DigiKey	0	0	$0	🛒 Buy Now

LA73076V Datasheet (150.21 KB)

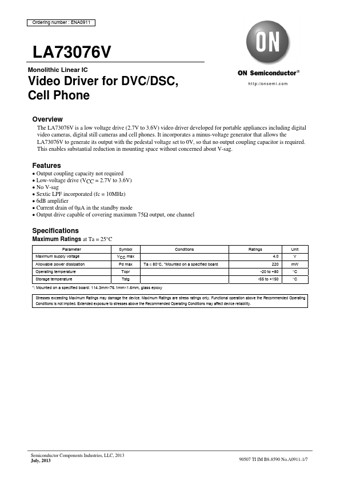

LA73076V Datasheet Preview — Preview of LA73076V PDF Datasheet

Datasheet Details

Part number:

LA73076V

Manufacturer:

ON Semiconductor ↗

File Size:

150.21 KB

Description:

Video driver

LA73076V Features

* Output coupling capacity not required

* Low-voltage drive (VCC = 2.7V to 3.6V)

* Νο V-sag

* Sextic LPF incorporated (fc = 10MHz)

* 6dB amplifier

* Current drain of 0μA in the standby mode

* Output drive capable of covering maximum 75Ω output,

LA73076V General Description

Output select pin Control of Pin1 OUT MIX Y C L(GND) 0V to 0.5V ⇒ { { { M(OPEN) OPEN or 1.6V±0.1V ⇒× {{ H(VCC) 2.2V to VCC ⇒{ × × 2 P-SAV- VCC Power save mode select pin CTL or 0V Control of Pin2 Mode L(GND) 0V to 0.5V ⇒ Active H(VCC) OPEN or VCC±0.5V ⇒ Standby 14 VCC_A Equiva.
