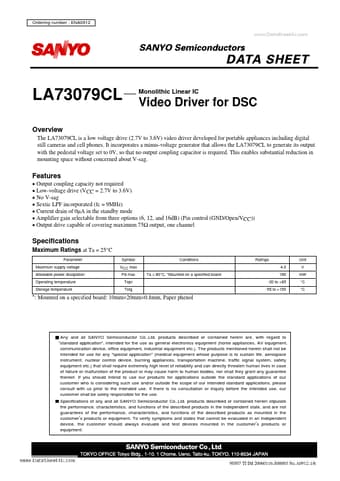

Preview of LA73079CL PDF
LA73079CL Datasheet Preview Page 2 LA73079CL Datasheet Preview Page 3

Datasheet Details

Part number:

LA73079CL

Manufacturer:

Sanyo Semicon Device

File Size:

98.32 KB

Description:

Monolithic linear ic video driver.

LA73079CL, Monolithic Linear IC Video Driver

Equivalent Circuit 10 VCC 2.16V REF 1.2V 2 BUF 0.72V 2kΩ 5 GND 3 VIN 1.1V Video input terminal (Sync-chip clamp (input High-impedance)) 10 VCC 2kΩ 2kΩ 200Ω 200Ω VIN GAIN SET: 6dB ⇒1.0Vp-p GAIN SET: 12dB ⇒500mVp-p GAIN SET: 16dB ⇒317mVp-p 3 2kΩ Active: ON Standby: OFF 5 GND 26kΩ

Ordering number : ENA0912 www.DataSheet4U.com LA73079CL Overview Monolithic Linear IC Video Driver for DSC The LA73079CL is a low voltage drive (2.7V to 3.6V) video driver developed for portable appliances including digital still cameras and cell phones.

It incorporates a minus-voltage generator that allows the LA73079CL to generate its output with the pedestal voltage set to 0V, so that no output coupling capacitor is required.

This enables substantial reduction in mounting space without c

LA73079CL Features

* Output coupling capacity not required

* Low-voltage drive (VCC = 2.7V to 3.6V)

* Νο V-sag

* Sextic LPF incorporated (fc = 9MHz)

* Current drain of 0µA in the standby mode

* Amplifier gain selectable from three options (6, 12, and 16dB) (Pin control (
