LA73074CL - Monolithic Linear IC Video Driver

Sanyo Semicon Device

📥 Download Datasheet

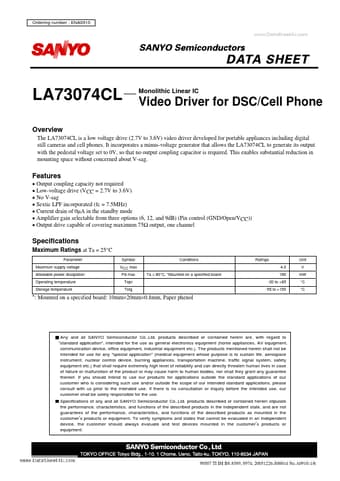

LA73074CL Datasheet Preview — Preview of LA73074CL PDF

Datasheet Details

Part number	LA73074CL
Manufacturer	Sanyo Semicon Device
File Size	98.43 KB
Description	Monolithic Linear IC Video Driver
Datasheet	LA73074CL_SanyoSemiconDevice.pdf

LA73074CL Product details

Description

Equivalent Circuit 10 VCC 2.16V REF 1.2V 2 BUF 0.72V 2kΩ 5 GND 3 VIN 1.1V Video input pin (Sync-chip clamp (input High-impedance)) 10 VCC 2kΩ 2kΩ 200Ω 200Ω VIN GAIN SET: 6dB ⇒1.0Vp-p GAIN SET: 12dB ⇒500mVp-p GAIN SET: 9dB ⇒710mVp-p 3 2kΩ Active: ON Standby: OFF 5 GND 26kΩ 1.1V 4 PSAVCTL VCC or 0V Power save mode select pin Control of Pin4 H(VCC) L(GND) OPEN or VCC±0.5V 0V to 0.3V ⇒ ⇒ MODE STANDBY ACTIVE 10 VCC 50kΩ 50kΩ 50kΩ 4kΩ PSAVCTL 4 5 5 GND 0V GND Continued on nex

Features

Output coupling capacity not required.
Low-voltage drive (VCC = 2.7V to 3.6V).
Νο V-sag.
Sextic LPF incorporated (fc = 7.5MHz).
Current drain of 0µA in the standby mode.
Amplifier gain selectable from three options (6, 12, and 9dB) (Pin control (GND/Open/VCC)).
Output drive capable of covering maximum 75Ω output, one channel Specifications Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Allowable power dissipation Ope.
