LA73076V Datasheet - Sanyo Semicon Device

LA73076V Monolithic Linear IC Video Driver

Output select pin OUT MIX { × Y { { C { { www.DataSheet4U.com Equivalent Circuit 14 VCC_A Control of Pin1 1 5kΩ 40kΩ S-CTL 1.6V REF 1.6V BUF 2.4V H(VCC) ⇒ { × × 16 2 P-SAVCTL VCC or 0V Power save mode select pin Control of Pin2 L(GND) H(VCC) 0V to 0.5V OPEN or VCC±0.5V ⇒ ⇒ Mode Active S.

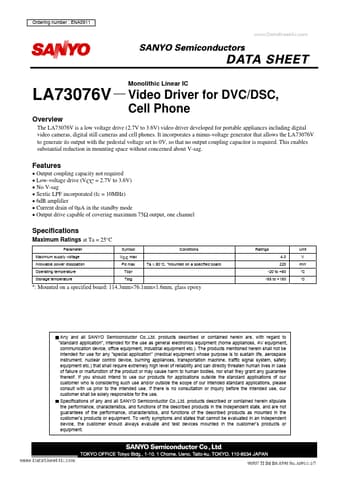

Ordering number : ENA0911 www.DataSheet4U.com Monolithic Linear IC LA73076V Overview Video Driver for DVC/DSC, Cell Phone The LA73076V is a low voltage drive (2.7V to 3.6V) video driver developed for portable appliances including digital video cameras, digital still cameras and cell phones. It incorporates a minus-voltage generator that allows the LA73076V to generate its output with the pedestal voltage set to 0V, so that no output coupling capacitor is required. This enables substantial r.

LA73076V Features

* Output coupling capacity not required

* Low-voltage drive (VCC = 2.7V to 3.6V)

* Νο V-sag

* Sextic LPF incorporated (fc = 10MHz)

* 6dB amplifier

* Current drain of 0µA in the standby mode

* Output drive capable of covering maximum 75Ω output,

LA73076V_SanyoSemiconDevice.pdf

LA73076V Datasheet Preview — Preview of LA73076V PDF

Datasheet Details

Part number:

LA73076V

Manufacturer:

Sanyo Semicon Device

File Size:

173.51 KB

Description:

Monolithic linear ic video driver.
