LA73060V Datasheet - Sanyo Electric

LA73060V Wideband 75ohm Video Driver

www.DataSheet4U.com Ordering number : ENA0378 Monolithic Linear IC LA73060V Overview Wideband 75Ω Video Driver This LA73060V is a wideband 75Ω Video Driver IC. The LA73060V is ideal for use the video output driver such as TVmonitor and DVD-player equipment. Functions 6channel output. 6MHz or 30MHz low pass filter. 6dB amplifier. Output mute. Y/C_MIX. Standby mode. Specifications Maximum Ratings at Ta = 25°C Parameter Maximum suppl.

LA73060V_SanyoElectric.pdf

Preview of LA73060V PDF

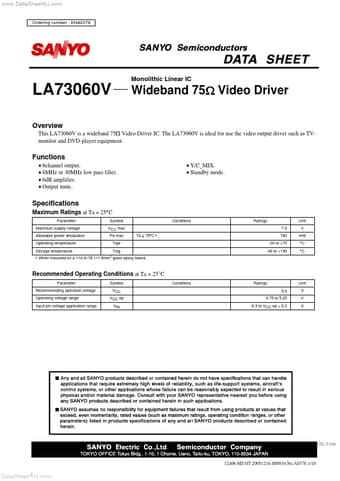

LA73060V Datasheet Preview Page 2 LA73060V Datasheet Preview Page 3

Datasheet Details

Part number:

LA73060V

Manufacturer:

Sanyo Electric

File Size:

614.31 KB

Description:

Wideband 75ohm video driver.
