LA73062V Datasheet - Sanyo Semicon Device

LA73062V Monolithic Linear IC Video Driver

Ordering number : ENA0909 www.DataSheet4U.com LA73062V Overview Monolithic Linear IC Video Driver for Wideband The LA73062V is a wideband video output interface. It is ideal as a driver for Composite, S, YPbPr, and RGB analog video signal outputs. Incorporating low pass filters (6/12/30MHz), the LA73062V can also serve as a digital clock noise rejection filter. Functions Six channel output 6MHz low pass filter (SD) / 12MHz or 30MHz low pass filter (HD) 6dB amp.

LA73062V Features

* 3V_REG 200kΩ 8 1

LA73062V_SanyoSemiconDevice.pdf

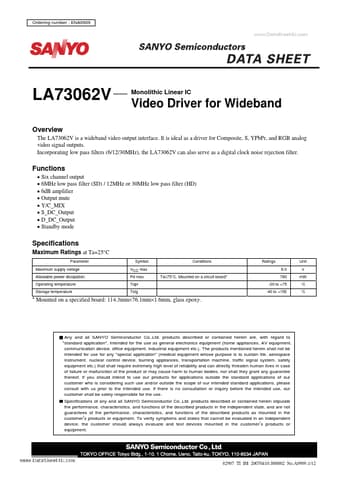

Preview of LA73062V PDF
LA73062V Datasheet Preview Page 2 LA73062V Datasheet Preview Page 3

Datasheet Details

Part number:

LA73062V

Manufacturer:

Sanyo Semicon Device

File Size:

241.68 KB

Description:

Monolithic linear ic video driver.
