LA73073CL - Monolithic Linear IC Video Driver for DSC

📥 Download Datasheet

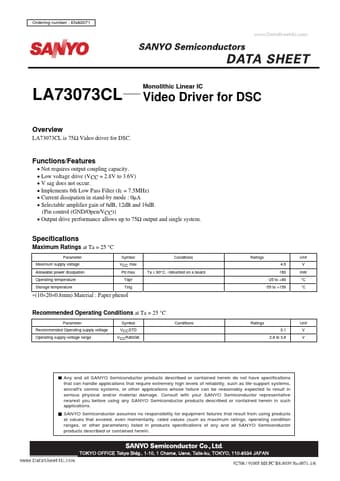

Preview of LA73073CL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LA73073CL
Manufacturer Sanyo Semicon Device
File Size 259.65 KB
Description Monolithic Linear IC Video Driver for DSC
Datasheet download datasheet LA73073CL_SanyoSemiconDevice.pdf

LA73073CL Product details

Description

3 VIN 1.1V Video input terminal (Sync-tip clamp (input High-impedance)) 4 PSAVCTL VCC or 0V Power save mode select pin Control of Pin4 H(VCC) L(GND) OPEN or VCC±0.5V 0V to 0.3V ⇒ ⇒ MODE STANDBY ACTIVE 5 GND 0V Continued on next page.No.0071-4/6 LA73073CL Continued from preceding page.Pin No 6 Symbol CLKOUT Equivalent Circuit Voltage +3.0V ↑↓ 0V www.DataSheet4U.com Description Pin : Clock output terminal 7 ND1 +0.5V ↑↓ -2.6V (-VCC) Pin7 : The terminal which transmits an elect
