LB11923V Datasheet - ON Semiconductor

LB11923V Three-Phase Brushless Motor Driver

Ordering number : ENN7498A LB11923V Monolithic Digital IC Three-Phase Brushless Motor Driver http://onsemi.com Overview The LB11923V is a pre-driver IC designed for variable-speed control of 3-phase brushless motors. It can be used to implement a motor drive circuit with the desired output capacity (voltage, current) by using discrete transistors for the output stage. It implements direct PWM drive for minimal power loss. Since the LB11923V includes a built-in VCO circuit, applications can c.

LB11923V-ONSemiconductor.pdf

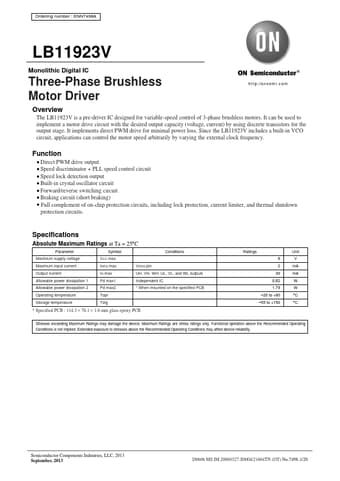

Preview of LB11923V PDF
LB11923V Datasheet Preview Page 2 LB11923V Datasheet Preview Page 3

Datasheet Details

Part number:

LB11923V

Manufacturer:

ON Semiconductor ↗

File Size:

336.83 KB

Description:

Three-phase brushless motor driver.
