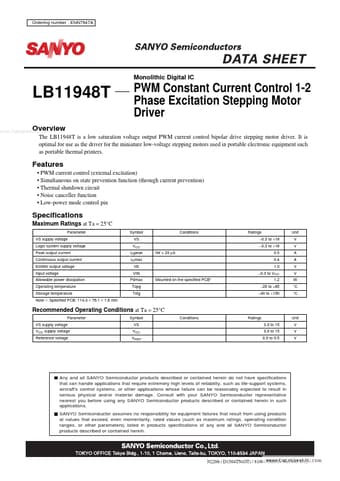

LB11948T Datasheet - Sanyo Semicon Device

LB11948T - Monolithic Digital IC PWM Constant Current Control 1-2 Phase Excitation Stepping Motor Driver

Output Output Unused Unused Lower side internal diode anode connection Constant current control sensing The motor current is set by the value of the sensing resistor Re connected between the E1 pin and ground. The current is set according to the following equation: IO = VREF/Re (A) VS power supply .

LB11948T Features

* PWM current control (external excitation)

* Simultaneous on state prevention function (through current prevention)

* Thermal shutdown circuit

* Noise canceller function

* Low-power mode control pin Specifications Maximum Ratings at Ta = 25°C Parameter VS su
