LB11981 - Three-Phase Sensorless Motor Driver

LB11981 Description

Ordering number : ENN6656A Monolithic Digital IC LB11981 Three-Phase Sensorless Motor Driver Applications Refrigerator fan motors Package Dimensio.

LB11981 Features

* No Hall sensors required.
* No FG sensors required.
* Lock detection circuit (Can be set to operate in either automatic recovery or latching mode. )
* Thermal shutdown circuit
* Current limiter circuit
* Low-voltage shutdown circuit
* Forward/

LB11981 Applications

* Refrigerator fan motors Package Dimensions unit: mm 3222-HSOP28 (275 mil) [LB11981] 28 15 1.0 5.6 0.2 Ratings 30 Power supply for output stage 30 30
* 0.3 to VCC + 0.3 1.0 Independent IC 0.5
* 20 to +75

📥 Download Datasheet

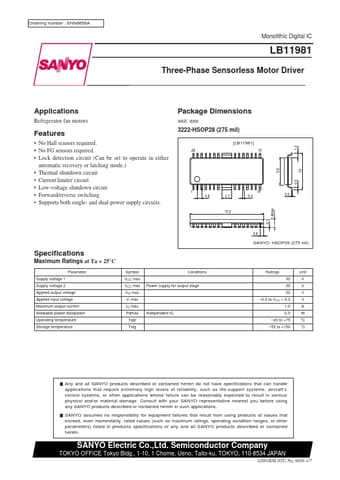

Preview of LB11981 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LB11981
Manufacturer
Sanyo
File Size
47.00 KB
Datasheet
LB11981_SanyoSemiconDevice.pdf
Description
Three-Phase Sensorless Motor Driver
