LB11988HR - Fan Motor Driver

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

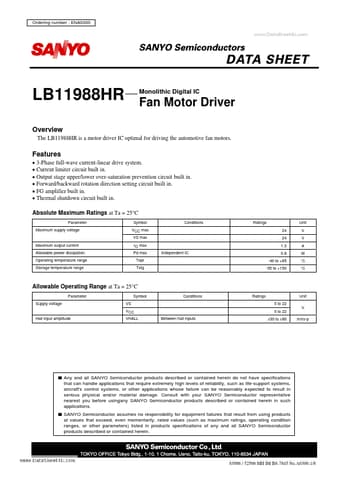

LB11988HR Fan Motor Driver by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LB11988HR

Datasheet Details

Part number	LB11988HR
Manufacturer	Sanyo Semicon Device
File Size	95.50 KB
Description	Fan Motor Driver
Datasheet	LB11988HR Datasheet
Additional preview pages of the LB11988HR datasheet.

Product details

Features

3-Phase full-wave current-linear drive system.
Current limiter circuit built in.
Output stage upper/lower over-saturation prevention circuit built in.
Forward/backward rotation direction setting circuit built in.
FG amplifier built in.
Thermal shutdown circuit built in. Absolute Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Symbol VCC max VS max Maximum output current Allowable power dissipation Operating temperature ran.
