LB11980H - Monolithic Digital IC

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

LB11980H Monolithic Digital IC by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LB11980H

Datasheet Details

Part number	LB11980H
Manufacturer	Sanyo Semicon Device
File Size	141.53 KB
Description	Monolithic Digital IC
Datasheet	LB11980H Datasheet
Additional preview pages of the LB11980H datasheet.

Product details

Features

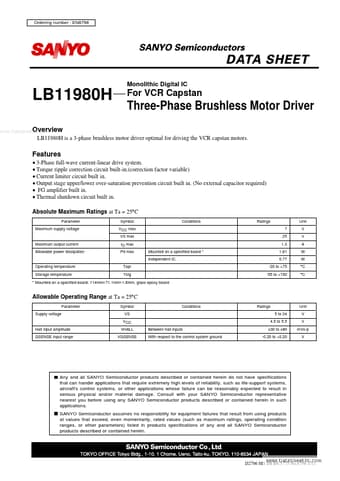

3-Phase full-wave current-linear drive system.
Torque ripple correction circuit built-in. (correction factor variable).
Current limiter circuit built in.
Output stage upper/lower over-saturation prevention circuit built in. (No external capacitor required).
FG amplifier built in.
Thermal shutdown circuit built in. Absolute Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Symbol VCC max VS max Maximum output current Allowable p.
