LB1868M - 2-phase Brushless Fan Motor Driver

ON Semiconductor

📥 Download Datasheet

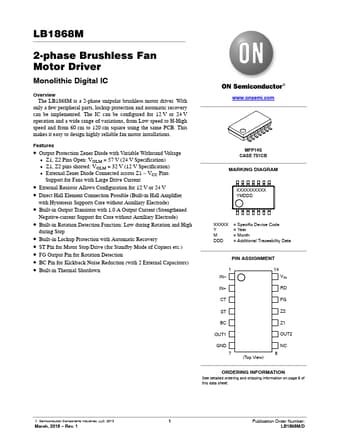

LB1868M Datasheet Preview — Preview of LB1868M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LB1868M
Manufacturer: ON Semiconductor ↗
File Size: 225.68 KB
Datasheet: LB1868M-ONSemiconductor.pdf
Description: 2-phase Brushless Fan Motor Driver

LB1868M Product details

Features

Output Protection Zener Diode with Variable Withstand Voltage.
Z1, Z2 Pins Open: VOLM = 57 V (24 V Specification).
Z1, Z2 pins shorted: VOLM = 32 V (12 V Specification).
External Zener Diode Connected across Z1.
VCC Pins: Support for Fans with Large Drive Current.
External Resistor Allows Configuration for 12 V or 24 V.
Direct Hall Element Connection Possible (Built-in Hall Amplifier with Hysteresis Supports Core without Auxiliary E.
