LB1868

Two-Phase Brushless Fan Motor Driver

LB1868 Features

* SANYO : DIP10S Any and all SANYO products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expecte

LB1868 General Description

Pin name IN

* IN+ CT Z1 Z2 OUT1 OUT2 VIN GND RD Function Hall input + pin Hysteresis amplifier Hall input

* pin Hysteresis amplifier Lockup protection time setting capacitor pin (0.47 to 4.7 µF) External Zener diode pin (external Zener diode to be connected between power supply and Z1.

LB1868 Datasheet (32.36 KB)

Preview of LB1868 PDF

Datasheet Details

Part number:

LB1868

Manufacturer:

Sanyo

File Size:

32.36 KB

Description:

Two-phase brushless fan motor driver.
Ordering number : ENN

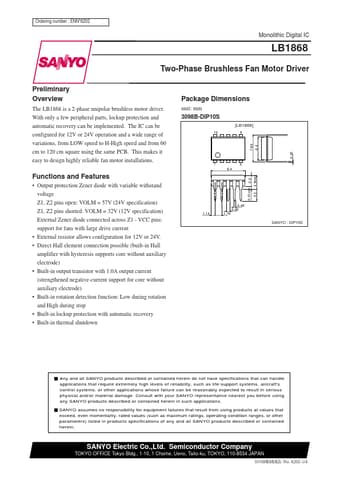

*6202 LB1868 Monolithic Digital IC LB1868 Two-Phase Brushless Fan Motor Driver Preliminary Overview The LB1868 is a 2-phase.
