LB1867M 2-phase Brushless Fan Motor Driver

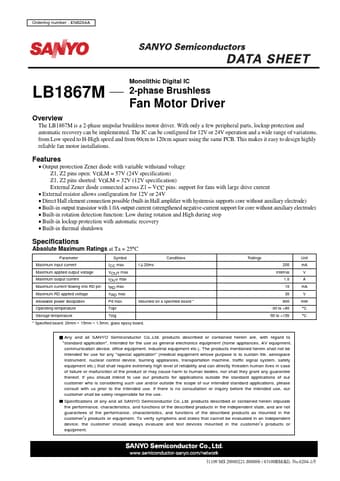

www.DataSheet.co.kr Ordering number : EN6204A Monolithic Digital IC LB1867M Overview 2-phase Brushless Fan Motor Driver The LB1867M is a 2-phase unipolar brushless motor driver. With only a few peripheral parts, lockup protection and automatic recovery can be implemented. The IC can be configured for 12V or 24V operation and a wide range of variations, from Low speed to H-High speed and from 60cm to 120cm square using the same PCB. This makes it easy to design highly reliable fan motor ins.

LB1867M Features

* Output protection Zener diode with variable withstand voltage Z1, Z2 pins open: VOLM = 57V (24V specification) Z1, Z2 pins shorted: VOLM = 32V (12V specification) External Zener diode connected across Z1

* VCC pins: support for fans with large drive current

* External resi
