LC75806PT - 1/4 and 1/3-Duty LCD Display Driver

Datasheet Summary

Features

  • Key input function for up to 30 keys (A key scan is performed only when a key is pressed. ).
  • 1/4 duty 1/3 bias and 1/3 duty 1/3 bias drive schemes can be controlled from serial data.
  • Capable of driving up to 304 segments using 1/4 duty and up to 231 segments using 1/3 duty.
  • Switching between key scan output and segment output can be controlled from serial data.
  • The key scan operation enabled/disabled state can be controlled from serial data.

📥 Download Datasheet

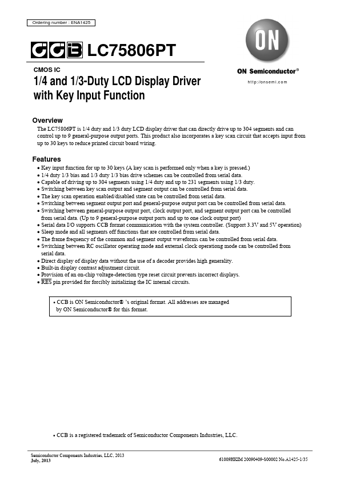

Datasheet preview – LC75806PT

Datasheet Details

Part number LC75806PT
Manufacturer ON Semiconductor
File Size 414.84 KB
Description 1/4 and 1/3-Duty LCD Display Driver
Datasheet download datasheet LC75806PT Datasheet
Additional preview pages of the LC75806PT datasheet.

📁 Similar Datasheet

  • LC7580 - CMOS LSI (Sanyo Semicon Device)
  • LC75804E - 1/3/ 1/4 Duty LCD Display Driver (Sanyo Semicon Device)
  • LC75804W - 1/3/ 1/4 Duty LCD Display Driver (Sanyo Semicon Device)
  • LC75808E - 1/8 to 1/10 Duty LCD Display Driver (Sanyo Semicon Device)
  • LC75808W - 1/8 to 1/10 Duty LCD Display Driver (Sanyo Semicon Device)
  • LC75811E - 1/8 to 1/10 Duty Dot Matrix LCD Display Controller/Driver (Sanyo Semicon Device)
  • LC75811W - 1/8 to 1/10 Duty Dot Matrix LCD Display Controller/Driver (Sanyo Semicon Device)
  • LC75813E - General-Purpose LCD Driver (Sanyo Semicon Device)
  • LC75813T - General-Purpose LCD Driver (Sanyo Semicon Device)
  • LC75814V - 1/4 Duty General-Purpose LCD Driver (Sanyo Semicon Device)
Other Datasheets by ON Semiconductor
  • LC75805PE - 1/1 to 1/4 Duty General-Purpose LCD Display Driver
  • LC75808W - 1/8 to 1/10 Duty LCD Display Driver
  • LC75809PT - 1/4 and 1/3-Duty General-Purpose LCD Display Driver
  • LC75810E - 1/8 to 1/10 Duty Dot Matrix LCD Display Controllers Drivers
  • LC75810T - 1/8 to 1/10 Duty Dot Matrix LCD Display Controllers Drivers
  • LC75812PT - Dot Matrix LCD Display Controllers/Drivers
  • LC75813E - General-Purpose LCD Driver
  • LC75813T - General-Purpose LCD Driver

Full PDF Text Transcription

Click to expand full text
Ordering number : ENA1425 LC75806PT CMOS IC 1/4 and 1/3-Duty LCD Display Driver with Key Input Function http://onsemi.com Overview The LC75806PT is 1/4 duty and 1/3 duty LCD display driver that can directly drive up to 304 segments and can control up to 9 general-purpose output ports. This product also incorporates a key scan circuit that accepts input from up to 30 keys to reduce printed circuit board wiring. Features • Key input function for up to 30 keys (A key scan is performed only when a key is pressed.) • 1/4 duty 1/3 bias and 1/3 duty 1/3 bias drive schemes can be controlled from serial data. • Capable of driving up to 304 segments using 1/4 duty and up to 231 segments using 1/3 duty. • Switching between key scan output and segment output can be controlled from serial data.
