LC75804W

1/3/ 1/4 Duty LCD Display Driver

LC75804W Features

* 0.8 20.0 LC75804E, LC75804W Specifications Absolute Maximum Ratings at Ta=25°C, VSS=0V Parameter Maximum supply voltage Symbol VDD max VLCD max VIN1 Input voltage VIN2 VIN3 VOUT1 Output voltage VOUT2 VOUT3 IOUT1 Output current IOUT2 IOUT3 IOUT4 Allowable power dissipation Operating temperature S

LC75804W Datasheet (297.29 KB)

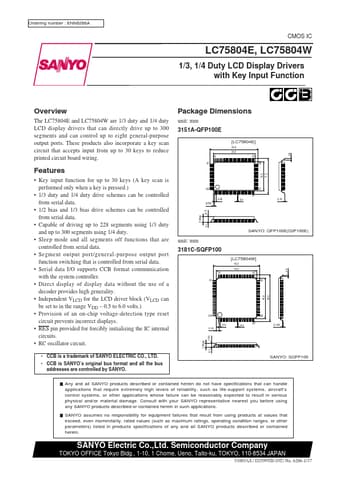

Preview of LC75804W PDF

Datasheet Details

Part number:

LC75804W

Manufacturer:

Sanyo Semicon Device

File Size:

297.29 KB

Description:

1/3/ 1/4 duty lcd display driver.
Ordering number : ENN6266A CMOS IC LC75804E, LC75804W 1/3, 1/4 Duty LCD Display Drivers with Key Input Function Overview The LC75804E and LC75804W .
