LC79430KNE - Dot-Matrix LCD Drivers

LC79430KNE Description

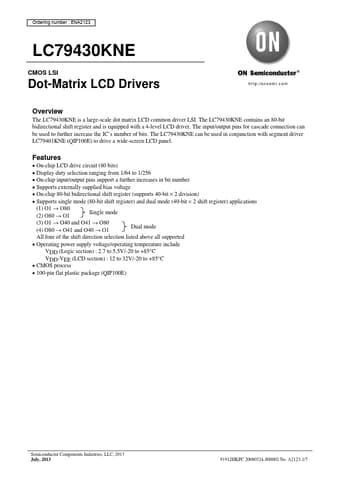

Ordering number : ENA2123 LC79430KNE CMOS LSI Dot-Matrix LCD Drivers http://onsemi.com Overview The LC79430KNE is a large-scale dot matrix LCD comm.

LC79430KNE Features

* On-chip LCD drive circuit (80 bits)
* Display duty selection ranging from 1/64 to 1/256
* On-chip input/output pins support a further increases in bit number
* Supports externally supplied bias voltage
* On-chip 80-bit bidirectional shift register (supp

LC79430KNE Applications

* (1) O1 → O80 (2) O80 → O1 Single mode (3) O1 → O40 and O41 → O80 (4) O80 → O41 and O40 → O1 Dual mode All four of the shift direction selection listed above all supported
* Operating power supply voltage/operating temperature include VDD (Logic section) : 2.7 to 5.5V/-20 to +85°C VDD-
