LV5684PVD, Multi-Power Supply

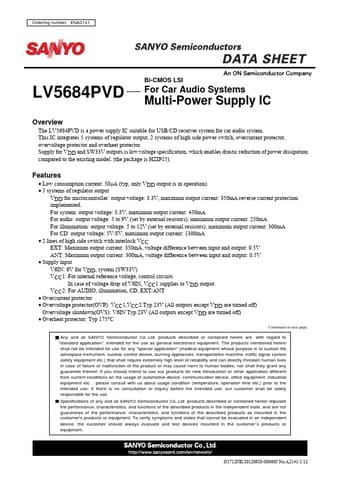

Ordering number : ENA2141 LV5684PVD Bi-CMOS LSI For Car Audio Systems Multi-Power Supply IC Overview The LV5684PVD is a power supply IC suitable for USB/CD receiver system for car audio system.

This IC integrates 5 systems of regulator output, 2 systems of high side power switch, overcurrent protector, overvoltage protector and overheat protector Supply for VDD and SW33V outputs is low voltage specification, which enables drastic reduction of power dissipation compared to the existing model.

LV5684PVD Features

* Low consumption current: 50μA (typ, only VDD output is in operation)

* 5 systems of regulator output VDD for microcontroller: output voltage: 3.3V, maximum output current: 350mA reverse current protection implemented. For system: output voltage: 3.3V, maximum output current: 450mA
