LV5684PVC Multi-Power Supply

LV5684PVC Description

Ordering number : ENA2103 LV5684PVC Bi-CMOS LSI For Car Audio Systems Multi-Power Supply IC Overview The LV5684PVC is a power supply IC suitable fo.

LV5684PVC Features

* Low consumption current: 50μA (typ, only VDD output is in operation)
* 5 systems of regulator output VDD for microcontroller: output voltage: 3.3V, maximum output current: 350mA reverse current protection implemented. For system: output voltage: 3.3V, maximum output current: 450mA

📥 Download Datasheet

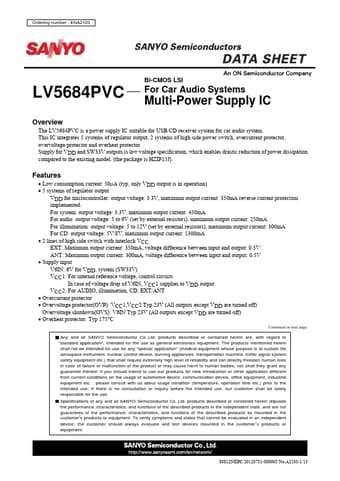

Preview of LV5684PVC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LV5684PVC
Manufacturer
Sanyo
File Size
175.14 KB
Datasheet
LV5684PVC-Sanyo.pdf
Description
Multi-Power Supply
