MBR1545CTG, MBR1535CTG Switch-mode Power Rectifier

📥 Download Datasheet  Datasheet Preview Page 1

Description

Switch-mode Power Rectifier MBR1535CTG, MBR1545CTG .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1545CTG, MBR1535CTG. Please refer to the document for exact specifications by model.

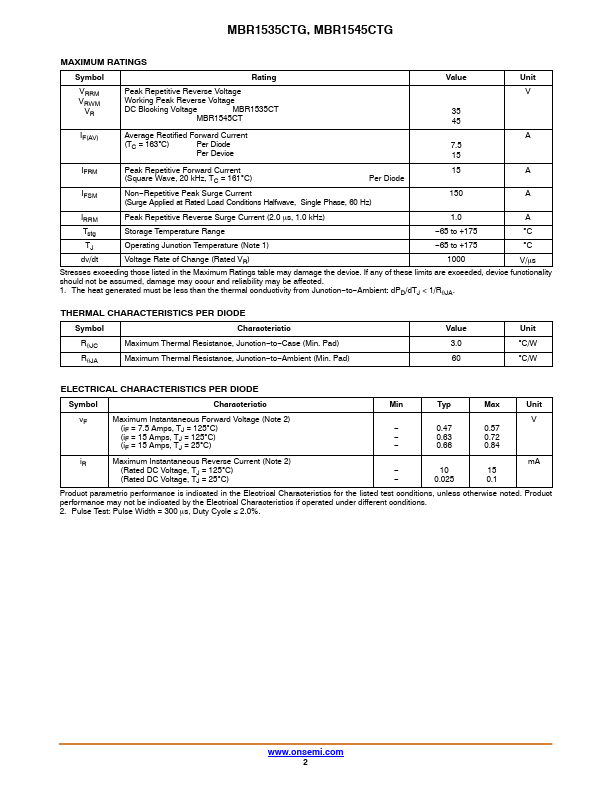

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MBR1545CTG, MBR1535CTG
Manufacturer
ON Semiconductor ↗
File Size
189.83 KB
Datasheet
MBR1535CTG-ONSemiconductor.pdf
Description
Switch-mode Power Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR1545CTG, MBR1535CTG.
Please refer to the document for exact specifications by model.

Features

* Center
* Tap Configuration
* Low Forward Voltage
* Low Power Loss / High Efficiency
* High Surge Capacity
* 175C Operating Junction Temperature
* 15 A Total (7.5 A Per Diode Leg)
* These Devices are Pb
* Free and are RoHS Compliant

Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Epoxy Meets UL 94, V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces Corrosion Resistant and Term
