MBR1535CTG Switch-mode Power Rectifier

MBR1535CTG Description

Switch-mode Power Rectifier MBR1535CTG, MBR1545CTG .

MBR1535CTG Features

* Center
* Tap Configuration
* Low Forward Voltage
* Low Power Loss / High Efficiency
* High Surge Capacity
* 175C Operating Junction Temperature
* 15 A Total (7.5 A Per Diode Leg)
* These Devices are Pb
* Free and are RoHS Compliant

MBR1535CTG Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Epoxy Meets UL 94, V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces Corrosion Resistant and Term

📥 Download Datasheet

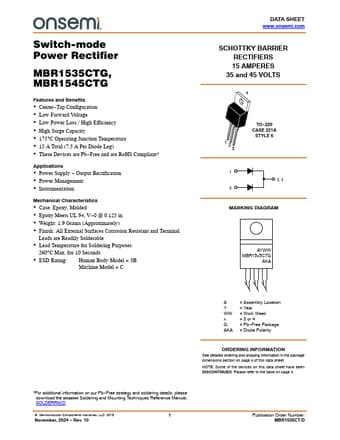

Preview of MBR1535CTG PDF
datasheet Preview Page 2 datasheet Preview Page 3
