MBR150 Schottky Rectifier

MBR150 Description

MBR150, MBR160 Vishay High Power Products Schottky Rectifier, 1 A DO-204AL Cathode Anode PRODUCT SUMMARY IF(AV) VR IRM 1A 50/60 V 10 mA at 125 °C.
The MBR150, MBR160 axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

MBR150 Features

* Low profile, axial leaded outline
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term relia

MBR150 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. VALUES 1.0 50/60 150 0.65 - 40 to 150 UNITS A V A V °C VOLTAGE RATINGS

📥 Download Datasheet

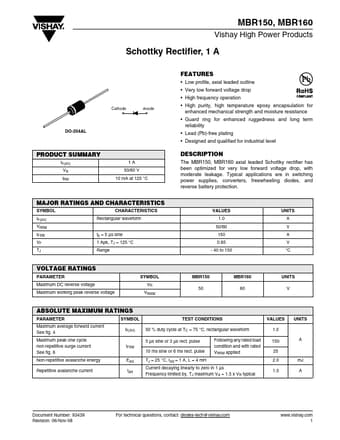

Preview of MBR150 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR150
Manufacturer
Vishay ↗
File Size
72.66 KB
Datasheet
MBR150-Vishay.pdf
Description
Schottky Rectifier
