MBR1505W - (MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

Dc Components

Part number	MBR1505W
Manufacturer	Dc Components
File Size	286.36 KB
Description	(MBR1505W - MBR1510W) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MBR1505W Datasheet

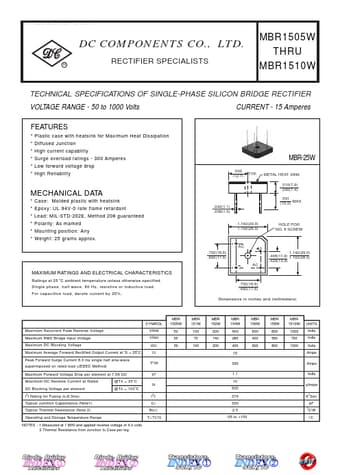

Additional preview pages of the MBR1505W datasheet.

Plastic case with heatsink for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 300 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .591 MAX. (15.0) MBR-25W.
