MBR1505 - (MBR1505 - MBR1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

Dc Components

Part number	MBR1505
Manufacturer	Dc Components
File Size	310.82 KB
Description	(MBR1505 - MBR1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MBR1505 Datasheet

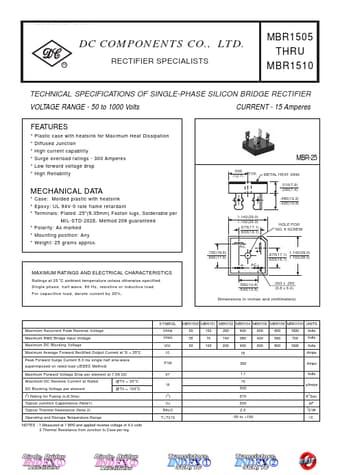

Additional preview pages of the MBR1505 datasheet.

Plastic case with heatsink for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 300 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .480(12.2) .425(10.8) 1.142(29.0) 1.102(28.0) .673(17.1) .633(16.1) MBR-25.
