MBRB20200CTG Power Rectifier

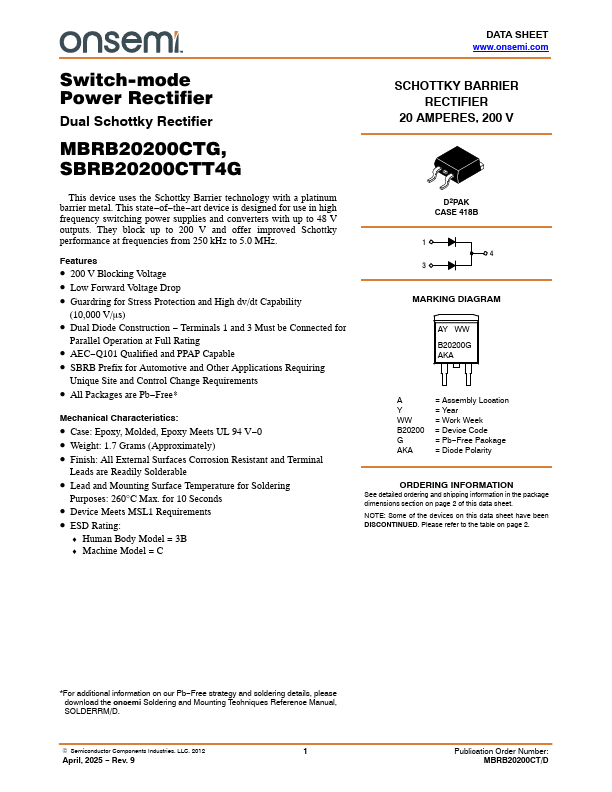

📥 Download Datasheet Datasheet Preview Page 1

Description

DATA SHEET www.onsemi.com Switch-mode Power Rectifier Dual Schottky Rectifier MBRB20200CTG, SBRB20200CTT4G SCHOTTKY BARRIER RECTIFIER 20 AMPERES, 20.

📥 Download Datasheet

Preview of MBRB20200CTG PDF

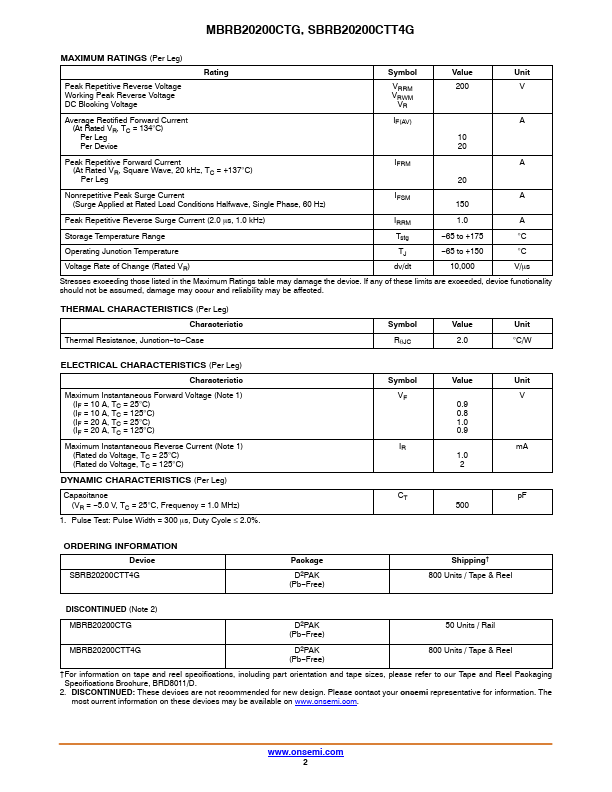

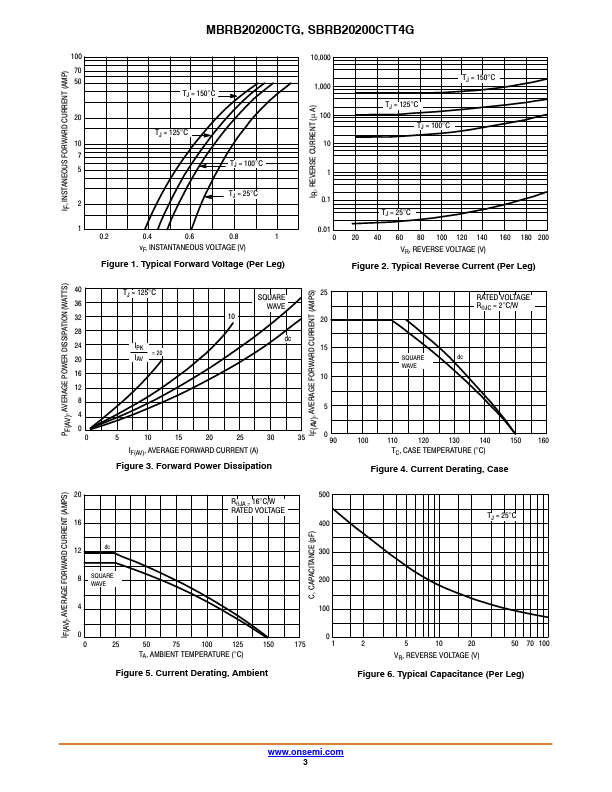

datasheet Preview Page 2 datasheet Preview Page 3

Features

* 200 V Blocking Voltage
* Low Forward Voltage Drop
* Guardring for Stress Protection and High dv/dt Capability (10,000 V/ms)
* Dual Diode Construction
* Terminals 1 and 3 Must be Connected for Parallel Operation at Full Rating
* AEC
* Q101 Quali

Applications

* Requiring Unique Site and Control Change Requirements
* All Packages are Pb
* Free
* Mechanical Characteristics:
* Case: Epoxy, Molded, Epoxy Meets UL 94 V
* Weight: 1.7 Grams (Approximately)
* Finish: All External Surfaces Corrosion Resistant and T
