MBRB20H100CTG, MBR20H100CTG SWITCHMODE Power Rectifier

ON Semiconductor

Description

MBR20H100CTG, MBRB20H100CTG, MBRF20H100CTG, NRVBB20H100CTT4G Switch-mode Power Rectifier 100 V, 20 A .

📥 Download Datasheet

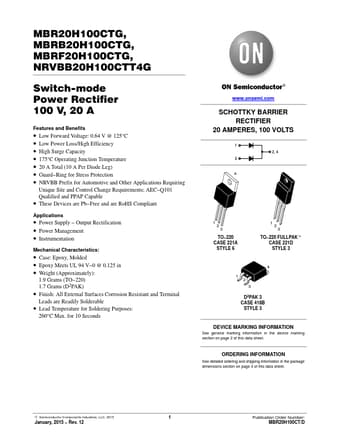

MBRB20H100CTG Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRB20H100CTG, MBR20H100CTG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MBRB20H100CTG, MBR20H100CTG
Manufacturer: ON Semiconductor ↗
File Size: 110.68 KB
Datasheet: MBR20H100CTG-ONSemiconductor.pdf
Description: SWITCHMODE Power Rectifier
Note: This datasheet PDF includes multiple part numbers: MBRB20H100CTG, MBR20H100CTG.
Please refer to the document for exact specifications by model.

Features

* Low Forward Voltage: 0.64 V @ 125°C
* Low Power Loss/High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 20 A Total (10 A Per Diode Leg)
* Guard
* Ring for Stress Protection
* NRVBB Prefix for Automotive and O

Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free and are RoHS Compliant Applications
* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Cha
